FDD LTE: B1/B3/B5/B7/B8/B20/B28
TDD LTE: B38/B40/B41
LTE-FDD: Max 150Mbps(DL) Max 50Mbps(UL)
LTE-TDD: Max 130Mbps(DL) Max 35Mbps(UL)
全国免费服务电话
19925398188
Hardware Characteristics |
Descriptions |
Model |
KB807 |
Chipset |
ASR1803S |
Power Supply Voltage |
DC 12V 1A |
Power Consumption |
Normal Operation Power <3W; |
Frequency Band |
FDD LTE: B1/B3/B5 /B8(B7/B20/B28) TDD LTE: B38/B39/B40/B41 WCDMA: B1/B5/B8 |
Rate |
LTE-FDD: Max 150Mbps(DL) Max 50Mbps(UL) LTE-TDD: Max 130Mbps(DL) Max 35Mbps(UL) WCDMA: Max 7.2Mbps(DL) Max 5.76Mbps(UL) |
WIFI Standard |
802.11b/g/n , 2.4G (WiFi6 optional) |
LTE Category |
Cat4 |
LED Indicators |
Power LEDx1 4G Link LEDx1 WiFi LED x1 LAN LEDx4 SIM LEDx1 |
Network Interface |

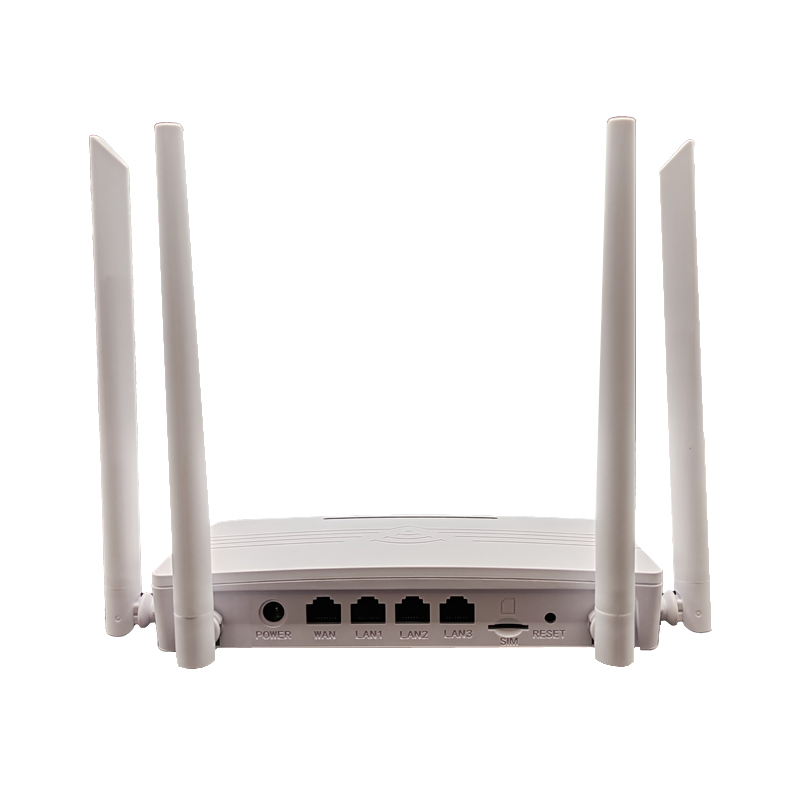

4 RJ45 LAN, 10/100Mbps, auto MDI/MDIX |
WAN/LAN Switch |
Support |
Antenna |
2*4G*5DBi, 2*2.4G WiFi*5DBi, 1*Decoration |
USIM/SIM |
Micro SIM card |
ESIM |
Optional |
Reset Key |
Long press 5s to restore the factory default setting |
Working Temperature |
-20°C-+60°C |
Working Humidity |
10%-95%RH |
Storage Temperature |
-40°C-+85°C |
