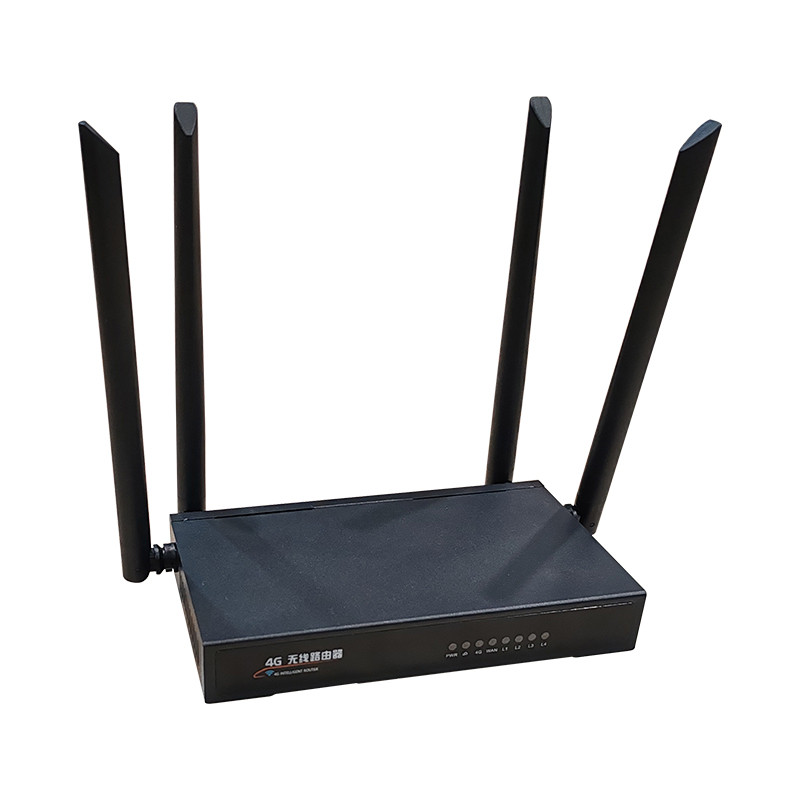

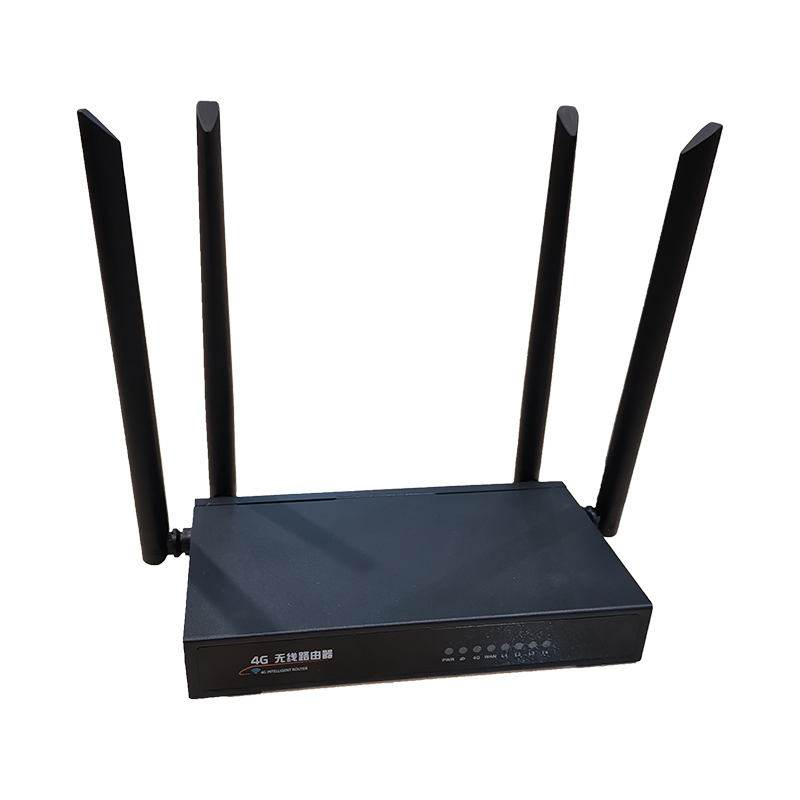

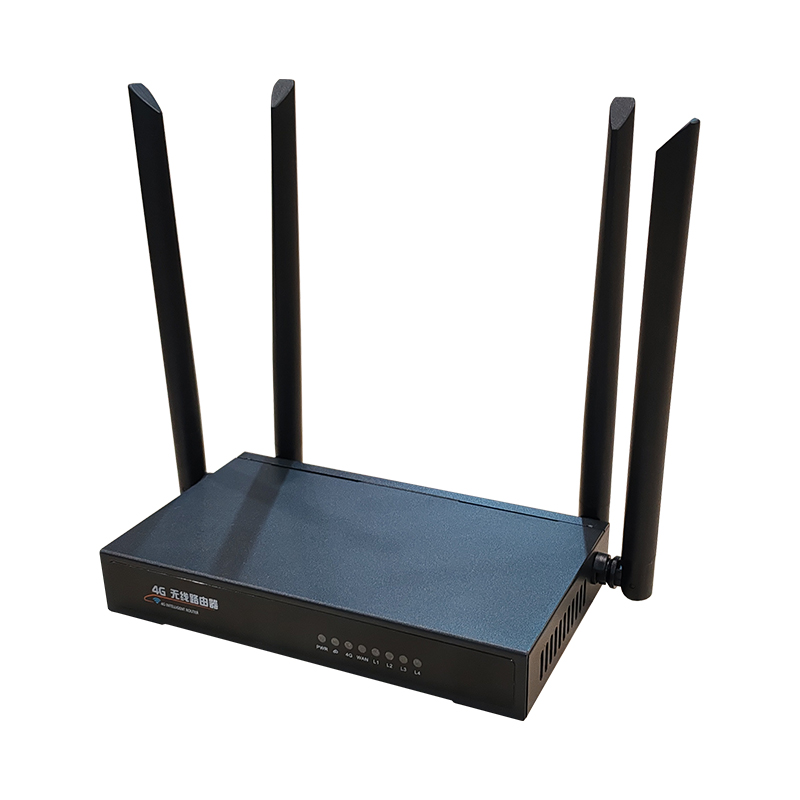

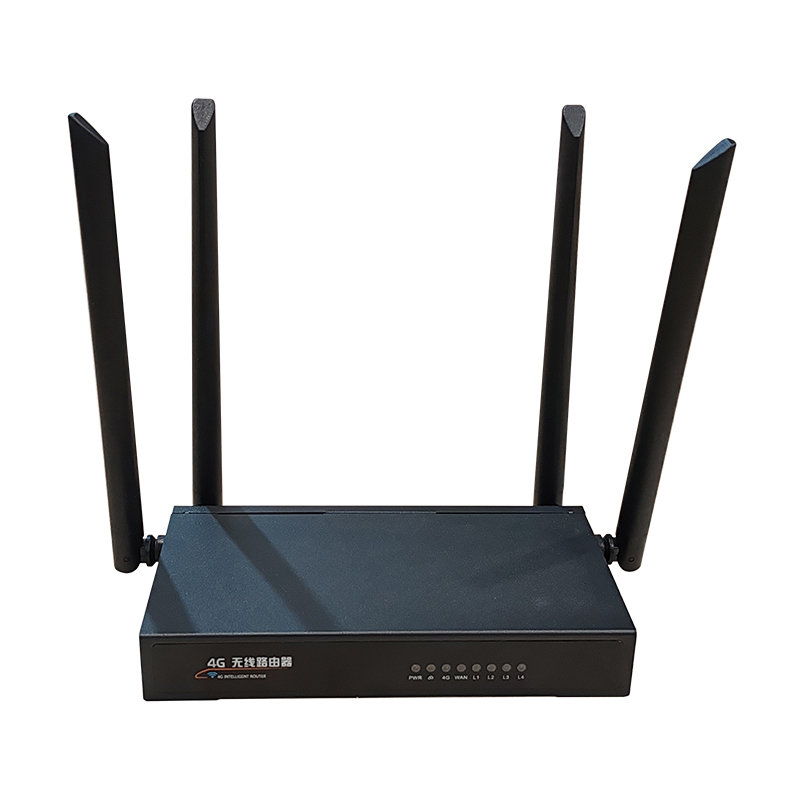

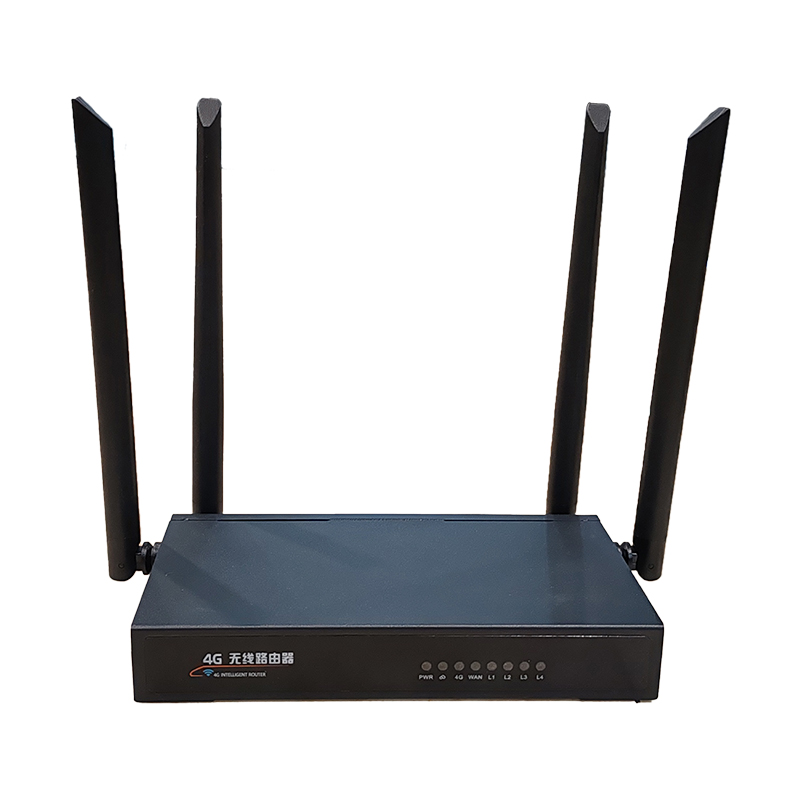

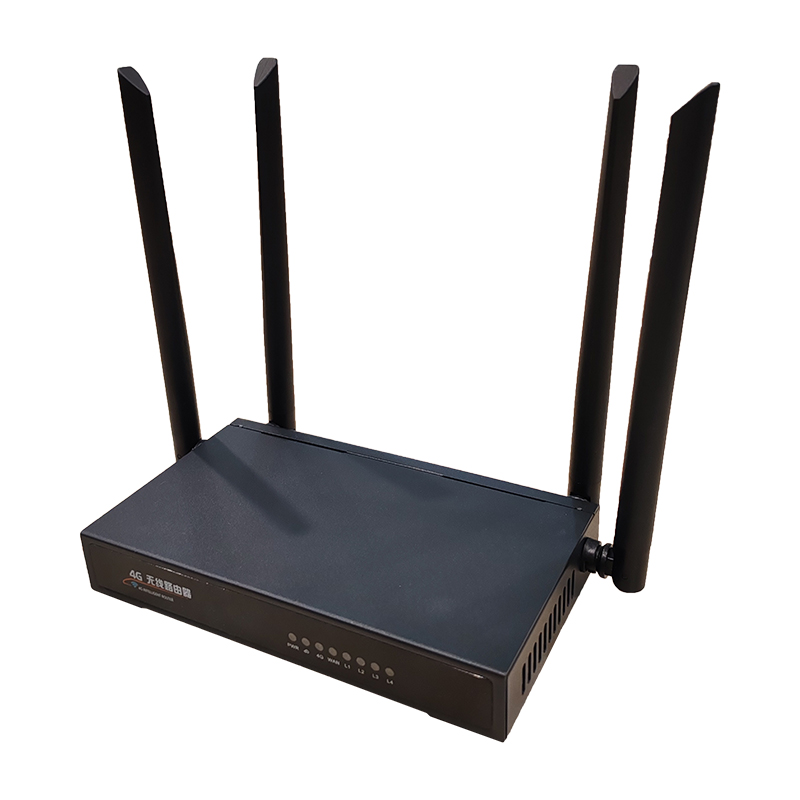

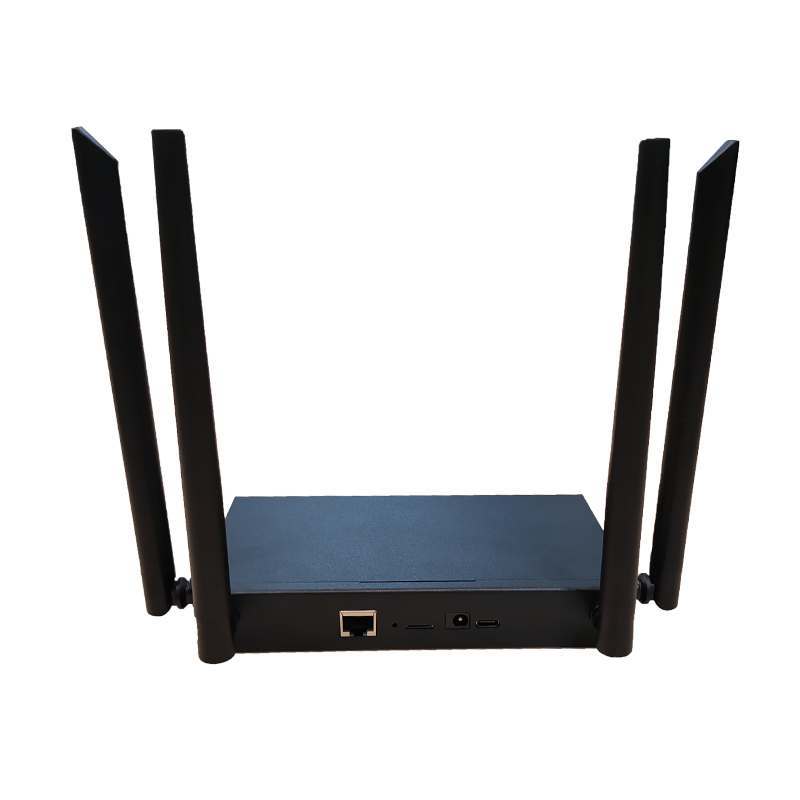

4G/LTE Channel
4G/LTE Channel
Summary
Support TD-LTE,LTE FDD,WCDMA,GSM
Hardware platform
module
ASR
Technical specifications
LTE-TDD
CAT4
LTE FDD
CAT4
Speed
LTE-FDD
Max 150M(DL) / Max 50M(UL)
LTE-TDD
Max 130M(DL) / Max 35M(UL)
WCDMA
Max 21.6M(DL) / Max 5.76M(UL)
Frequency band
LTE-TDD
QK: B38/B39/B40/B41
Europe: B38/B40/B41
LTE FDD
QK: B1/B3/B5/B8
Europe: B1/B3/B7/B8/B20
WCDMA
QK:B1/B5/B8
Europe: B1/B8
Antenna
LTE Main antenna
External antennax1
LTE Diversity antenna
External antennax1
WiFi antenna
External antennax2

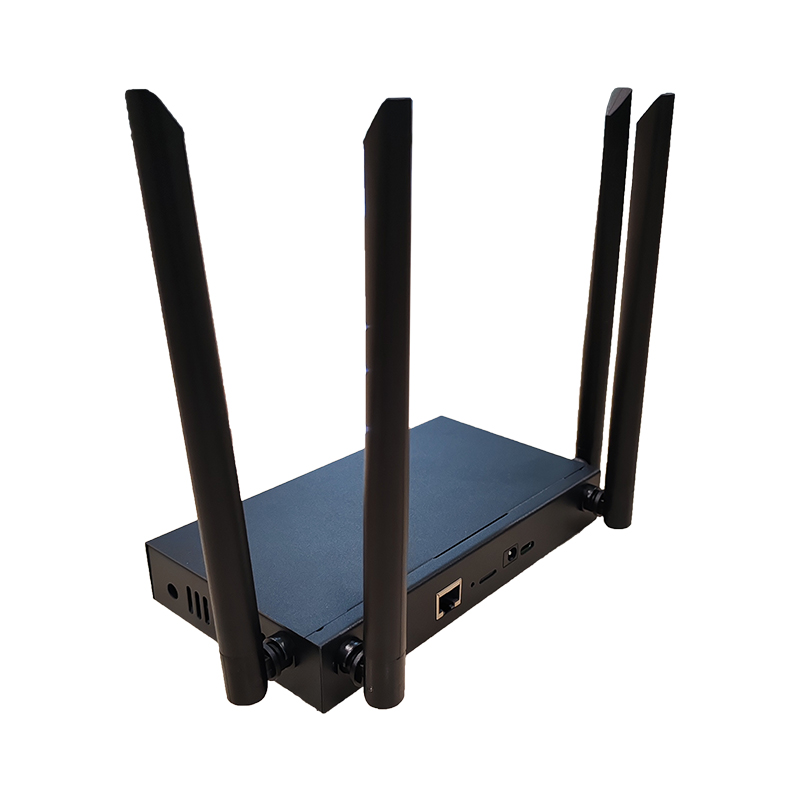

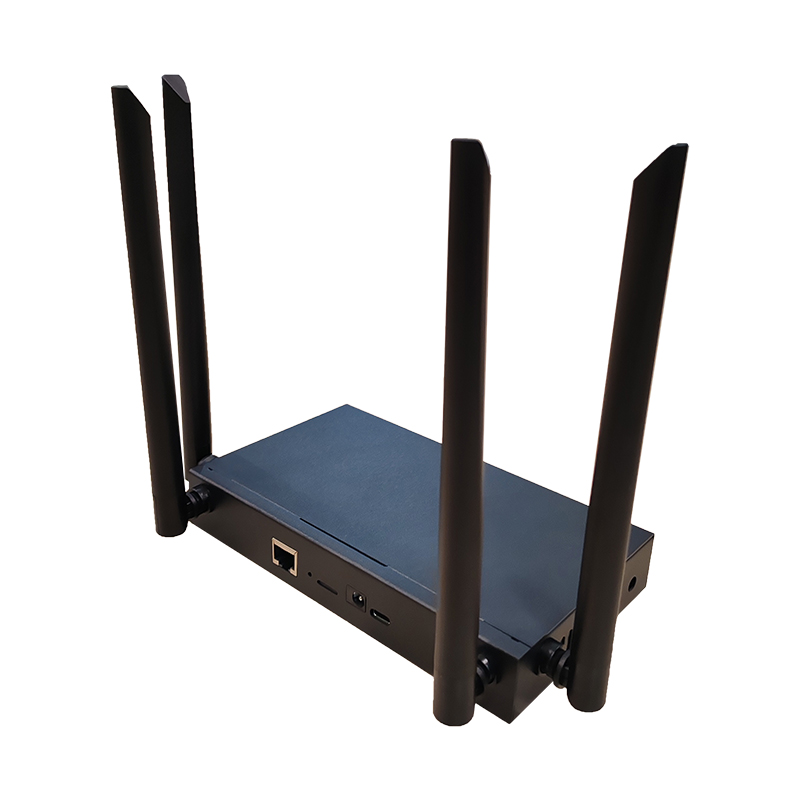

External interface
Interface
SIM Card slot
1*micro SIM Card slot
RJ45
1*10/100M Ethernet Port
indicator light
Power indicator
LTE indicator
WiFi indicator
LAN indicator
SIM Card
SIM+ESIM+ESIM
Power Supply
Power input
5V/1A DC
1
software function
Security
Administrator password modification
Support
WLAN
Power adjustment
Not support
Automatic channel selection
Support
SSID broadcast
Support
WPS
Support
Security, encryption
Open WEP
WPA2-PSK
WPA3-SAE
WPA/WPA2-PSK
WPA2-PSK/WPA3-SAE
MAC Address filtering
Optional Support
System upgrade
Local firmware upgrade
Support
Remote upgrade of virtual card/remote card program
Support
temperature
Operating temperature
-10~60℃
Storage temperature
-30~80℃
Humidity
5%~95% (Non condensation)
Dimension
170mm*96mm*27mm(Excluding Antenna)
Weight
300g
Standard packaging
Product body
1
Power Adapter
1
External antenna
4
Quick Guide
1
